Spring Rate in Compression Springs

  • Compression Spring Design Resources – What Is Spring Rate & How to Determine Spring Rate?

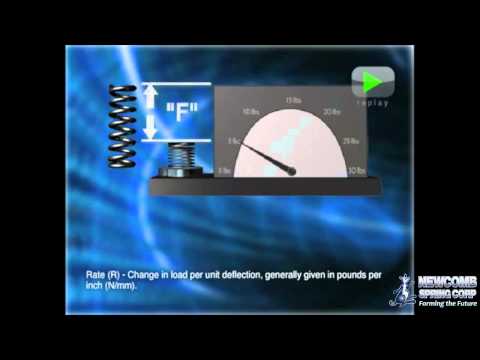

Spring rate is the change in load per unit of deflection and may be determined using the following procedure:

  1. Deflect* the spring approximated 20% of the available deflection and measure the load (P1) and the height (L1).
  2. Deflect* the spring approximately 80% of the available deflection and measure the load (P2) and the height (P2).
  3. Calculate the rate (lbs/inch) or (N/mm) by using the following formula:

  4. R =
    (P2 - P1) / (L1 - L2)

    *To deflect a spring one would apply or remove an external load, causing the spring ends/arms to move. Please contact the Newcomb Spring facility nearest you for more information on spring rate and other considerations of spring design.

Compression Springs

Manufacturing Specifications

  • .007 to .625 Inches In Spring Wire Diameter
  • Up to 2.0 Inches Bar Stock
  • Round, Rectangular, Square & Special-Section Wire
  • Standard & Custom Compression Spring Body Shapes
CUSTOM COMPRESSION SPRING QUOTE

Our spring calculator can assist you with design, spring calculations and stress checks.

Calculate Now
